3" Pillow Block Bearing UCP215-48 VPS-248 Brand UCP215-300T Best Price

UCP215-48 Steel Pillow Block Bearing:

76.2*86.2*275mm Bearing Features:

Inner Ring Diameter (bore):76.2mm

Outer Ring Diameter:86.2mm

Width:275mm

Bearing Weight:7.3KG

UCP215-48 Steel Pillow Block Bearing Description:

UCP215-48 Steel Pillow Block Bearing:

UCP215-48 Steel Pillow Block Bearing Description:

INTERCHANGE
AMI: UCP 215-48
Browning: VPS-248
Dodge: P2B-SC-300
Fafnir: RASC-3
Fafnir: YAS-3
Link-Belt: P3-U248N
Link-Belt: P3-Y248N
NSK: USP215-48S
NTN: UCP215-300T
Peer: FHSP215-48G
RHP: NP-3
Sealmaster: NP-48

Click Above for Full Dimensions

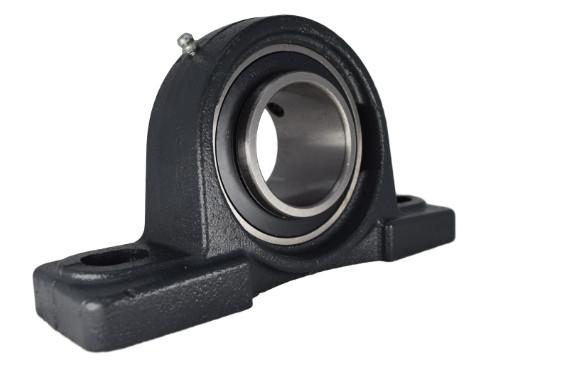

The UCP215-48 3" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP215-48 3" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.

The UCP215-48 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.

Applications for the UCP215-48 3" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.

Packing Method:

We have multiple packages for shielded radial ball bearing

1. Industrial package: plastic tube + paper carton + wooden pallet

craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Factory Photo:

Working principle:

1.Outer spherical bearing can bear radial load, radial load and axial load.

2.When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.

3.It has the performance of angular contact bearing and can bear a large axial load.

How to Place an Order:

1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.

2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.

3. If you agree with our price, we will make proforma invoice for payment

4. After payment is done, we will start to prepare bearings and arrange shipment

Contact us:

Email:xue@yekbearing.cn
WhatsApp/Skype:+8613863540916

Linqing city Zhonghai precision bearing marufacturing co., LTD. Is a new modern professional bearingmanufacturing enterprises.Founded in 1999, the factory has a history of 20 years.public introcuced the domestic and foreign advanced production and testing equipment, thecompany strength is abundant, production equipment advanced, detection means complete,bearing from the exquisite workmanship, quality stable and reliable.

Company specializing in theproduction of eletrical and mechanical agricultural machinery bearings, Deep groove ball bearing (Inch deep groove ball, Nonstandard deep groove ball bearing, R series, 16 series, RLS series ,RMS series, Auto parts bearing (auto hub bearing, auto air conditioning bearing, auto deep groove ball bearing), agricultural machinery bearing(Disc Harrow,Flanged Disc,Agricultural bearings including round, square bore, hex bore, and hex bore conveyor bearings) ,all kinds of agricultural machinery non-standard bearings, can be customized for clients of varioustypes of nonstandard bearings, agricultural machinery bearings and related accessories. Theproducts are widely used in electric machines, machinery, equipment, vehicles, electromechanicaltools, household appliances, instruments, ftness equipment, leisure equipment factories and soon. Our products are exported to Russia, the United States, Pakistan, Germany, Iraq, Iran, India, uzbekistan and other countries.

The company with "Integrity foothold, innovation and distance" , dligenlyy master new tchnology devotes to develop new producwholeheartedly provides the domestic and frign customers the high qualily product, thereasonable price, the stisfactory service. Warmly welcome new and old customers at home andabroad to vist and guide, negtiate and coperae so as to jint explore and ceate bilinifuture.
