UCP211-200T USP211-32S 2" Pillow Block Bearing ( Large Housing )
UCP211-32

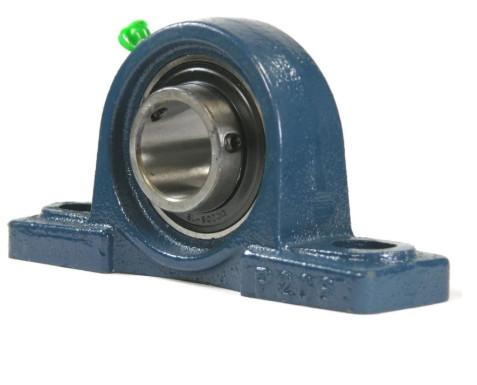

UCP211-32 Steel Pillow Block Bearing:
50.8*63.5*219mm Bearing Features:
Inner Ring Diameter (bore):50.8mm
Outer Ring Diameter:63.5mm
Width:219mm
Bearing Weight:3.3KG
UCP211-32 Steel Pillow Block Bearing Description:
| Model Number: | UCP211-32 |
| Inner diameter: | 50.8mm |
| Outer diameter: | 63.5mm |
| Width: | 219mm |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount
|
UCP211-32mm Steel Pillow Block Bearing:
INTERCHANGE
AMI: UCP 211-32
Browning: VPS-232
Dodge: P2B-SC-200
Fafnir: RASC-2
Fafnir: YAS-2
Link-Belt: P3-U232N
Link-Belt: P3-Y232N
NSK: USP211-32S
NTN: UCP211-200T
Peer: FHSP211-32G
RHP: NP-2
Sealmaster: NP-32
UCP211-32 Steel Pillow Block Bearing Features:
1.Outer spherical bearing with seat is a high precision component
product which is composed of grease sealed deep groove ball bearing
and bearing seat of various shapes.
2.Bearing components can be installed directly on the main body of
the mechanical device through several bolts, which has the function
of adjusting the center and can supplement the grease.
3.It is a very simple product for installation and use.
4.The sealing device with double structure can work in harsh
environment. Bearing seat is usually cast.
| Basic Dimensions |
| Shaft Size | Shaft Height | Bolt Distance | Overall Length | Overall Height |
| 2" | 2.50" | 6.77" | 8.63" | 4.90" |
Shipping Method:
1. For small amount (GW<100KGS), we can send you by express,
such as DHL, Fedex, TNT etc
2. For GW between 100KGS to 500KGS, we can send you by sea shipping
or air shipping
3. For large amount (GW > 500KGS), we can send you by sea
Factory Photo:
How to Place an Order:
1. Send us your bearing inquiry, including your bearing models,
your quantity. If you have brand requirement, please tell us which
brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the
quantity of goods, we will give you different options of
transportation.
3. If you agree with our price, we will make proforma invoice for
payment
4. After payment is done, we will start to prepare bearings and
arrange shipment
Main Advantages:
1.Supplementary Annex
The inner diameter of the spherical bearing with seat outer is
fitted with the clearance of the shaft by adopting'+'tolerance.
2.The bearing is fixed on the shaft through some top wire,
eccentric sleeve or fastening sleeve on the inner ring, which
reduces the precision requirement of the shaft and makes it very
convenient to install or replace the bearing.
3.Small Requirements for Working Environment
Outer spherical bearing with seat is usually pre-filled grease,
which adopts double or three-lip seal form. It is suitable for use
in occasions with more dust, mud and corrosive media, and is
beneficial to the work of the main engine.
4.Advantages of accuracy
Outer spherical bearing with seat has good rotation accuracy.
