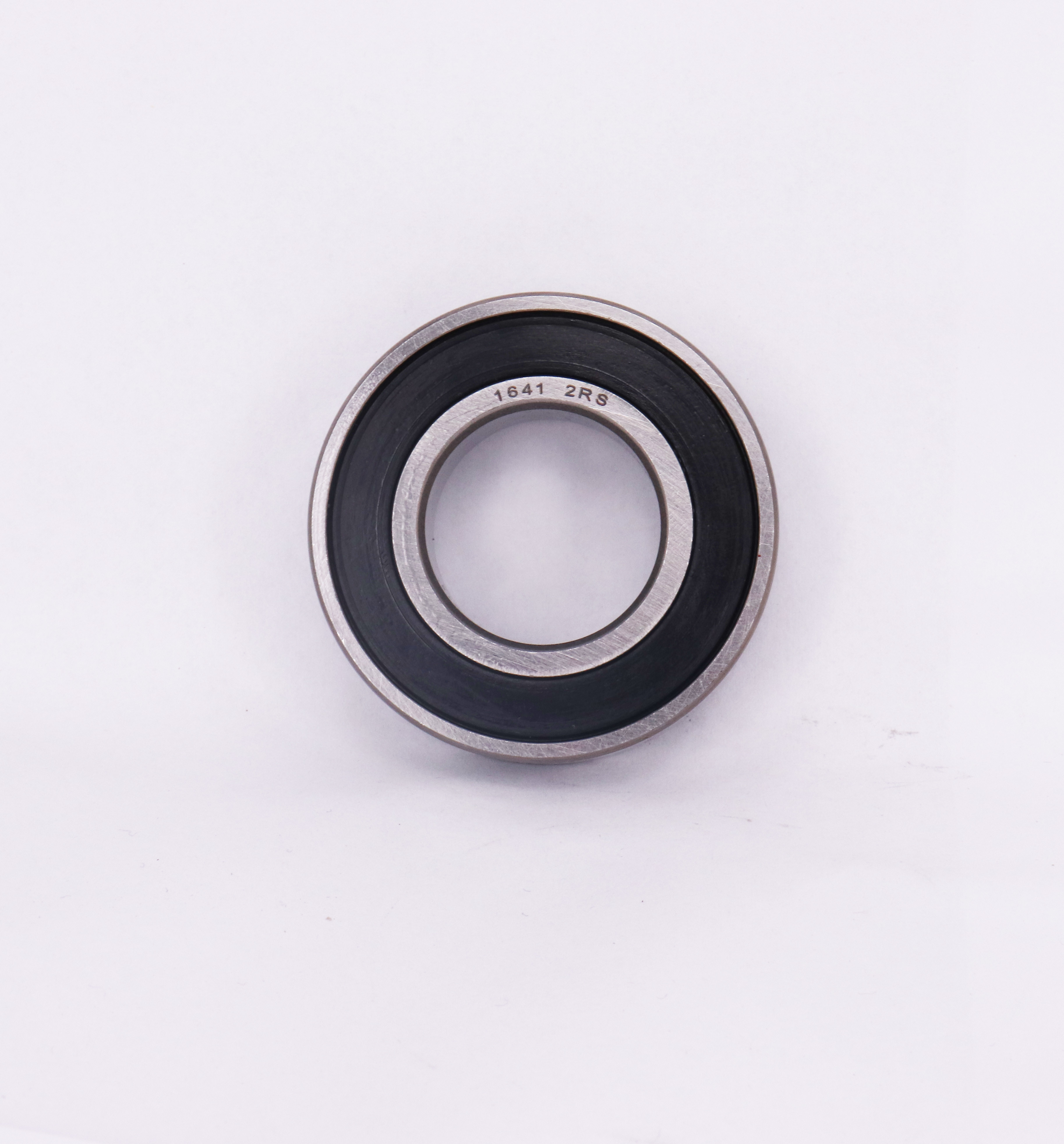

Inch Bearing 1641 2RS ZZ China Deep Groove Ball Bearing Inch
Dimensions Precision 1*2 Inch
1641 2RS ZZDeep Groove Ball Bearings
25.4*50.8*14.288mm Bearing Features:
Inner Ring Diameter (bore):1 Inch
Outer Ring Diameter:2 Inch
Width:0.562 Inch
Weight:0.1090KG
1641 2RS Deep Ball Bearing Description:
| Model Number | 1641 2RS |
| Structure: | Deep groove ball bearing |
| Inside Diameter: | 7/8 |
| Outside Diameter: | 2 |
| Thickness: | 9/16 |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
more models:
Bearing
NO. | Boundary dimensions(mm) | Load Rating(kN) |
Weight (kg) |
| d | D | B | Cr | Cor | |
| 1614 | 9.525 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0286 |
| 1615 | 11.112 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0267 |
| 1616 | 12.700 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0247 |
| 1620 | 11.113 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0520 |
| 1621 | 12.700 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0490 |
| 1622 | 14.288 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0464 |
| 1623 | 15.875 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0432 |
| 1628 | 15.875 | 41.275 | 12.700 | 9.57 | 4.79 | 0.0788 |
| 1630 | 19.050 | 41.275 | 12.700 | 9.38 | 5.03 | 0.0779 |
| 1633 | 15.875 | 44.450 | 12.700 | 9.38 | 5.03 | 0.100 |
| 1635 | 19.050 | 44.450 | 12.700 | 9.38 | 5.03 | 0.0914 |
| 1638 | 19.050 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1421 |
| 1639 | 20.638 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1380 |
| 1640 | 22.225 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1306 |
| 1641 | 25.400 | 50.800 | 14.288 | 14.02 | 7.88 | 0.1090 |
| 1652 | 28.575 | 63.500 | 15.375 | 16.21 | 10.42 | 0.2288 |
| 1654 | 31.750 | 63.500 | 15.875 | 16.21 | 10.42 | 0.2056 |
| 1657 | 31.750 | 65.088 | 17.462 | 16.21 | 10.42 | 0..2386 |
| 1658 | 33.388 | 65.088 | 17.642 | 16.21 | 10.42 | 0.2359 |
Deep groove ball bearings are suitable for high speeds and even
high speeds and are extremely durable and require no maintenance.
This type of bearing has a small friction coefficient, high limit
speed, various sizes and forms, and is used in precision
instruments, low noise motors, automobiles, motorcycles and general
machinery.
Deep groove ball bearings can be used in gearboxes,
instrumentation, motors, household appliances, internal combustion
engines, transportation vehicles, agricultural machinery,
construction machinery, construction machinery, roller skates,
yo-yo, etc
1641 bearing has open, seals and shield types, and v-groove inner
ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery,
Washing Machine, Power Tool etc.
How to Place an Order:
1. Send us your bearing inquiry, including your bearing models,
your quantity. If you have brand requirement, please tell us which
brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the
quantity of goods, we will give you different options of
transportation.
3. If you agree with our price, we will make proforma invoice for
payment
4. After payment is done, we will start to prepare bearings and
arrange shipmentProduct Details
This radial ball bearing features single-row alignment.
FAQ:
Q: Are you a trading company or a factory?
A: We have both. We are trading company and we have own factory.
Q: What is the delivery time if we place an order?
A: For small orders, our delivery time is 3 days. If the amount is
large, usually our delivery time is 7-20 days.
Q: What is your payment term?
A: We accept T/T, W/U, PayPal and L/C.
Q: Do you have a warranty on bearings?
Answer: In normal use, our bearing guarantee period is 1 year.
