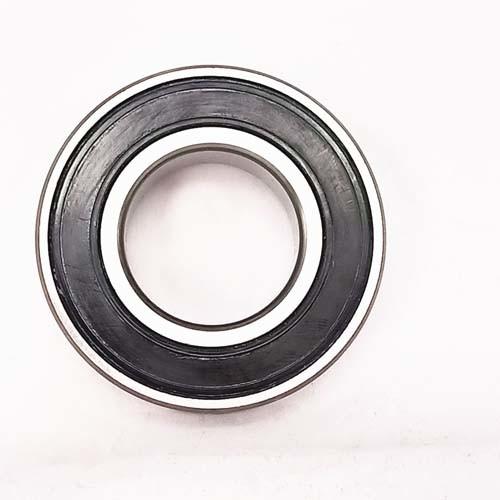

1640DC Sealed Ball Bearing BR9940A 3040DC 23214-88 1640-2RS Ball
Bearing 22.225*50.8*14.288mm
1640-2RS Deep Groove Ball Bearings
22.225*50.8*14.288mm Bearing Features:
Inner Ring Diameter (bore):0.875 Inch
Outer Ring Diameter:2 Inch
Width:0.562 Inch
Weight:0.1306KG
1640 2RS Deep Ball Bearing Description:
| Model Number | 1640 2RS |
| Structure: | Deep groove ball bearing |
| Inside Diameter: | 7/8 |
| Outside Diameter: | 2 |
| Thickness: | 9/16 |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
more models:
Bearing
NO. | Boundary dimensions(mm) | Load Rating(kN) |
Weight (kg) |
| d | D | B | Cr | Cor | |
| 1614 | 9.525 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0286 |
| 1615 | 11.112 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0267 |
| 1616 | 12.700 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0247 |
| 1620 | 11.113 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0520 |
| 1621 | 12.700 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0490 |
| 1622 | 14.288 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0464 |
| 1623 | 15.875 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0432 |
| 1628 | 15.875 | 41.275 | 12.700 | 9.57 | 4.79 | 0.0788 |
| 1630 | 19.050 | 41.275 | 12.700 | 9.38 | 5.03 | 0.0779 |
| 1633 | 15.875 | 44.450 | 12.700 | 9.38 | 5.03 | 0.100 |
| 1635 | 19.050 | 44.450 | 12.700 | 9.38 | 5.03 | 0.0914 |
| 1638 | 19.050 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1421 |
| 1639 | 20.638 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1380 |
| 1640 | 22.225 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1306 |
| 1641 | 25.400 | 50.800 | 14.288 | 14.02 | 7.88 | 0.1090 |
| 1652 | 28.575 | 63.500 | 15.375 | 16.21 | 10.42 | 0.2288 |
| 1654 | 31.750 | 63.500 | 15.875 | 16.21 | 10.42 | 0.2056 |
| 1657 | 31.750 | 65.088 | 17.462 | 16.21 | 10.42 | 0..2386 |
| 1658 | 33.388 | 65.088 | 17.642 | 16.21 | 10.42 | 0.2359 |
1640 2RS Single Row Radial Ball Bearing is designed specifically to
be dimensional and interchangeable with standard domestic inch
series ball bearings.
1600 Series Single Row Radial Ball Bearing incorporate the ABEC1
tolerances and 52100 steel which allows them to offer economy with
electric motor quality. The 1600 Series is available in shielded
and sealed configurations. The improved ball complements and close
tolerances can also increase their load capacity.
Single Row Radial Ball Bearing
Made from 52100 High Carbon Steel
Uses Grade 10 balls
Abec 1
Chevron SRI 2 Grease
Available with Rubber Seals, Metal Shields or Open
Used in electric motors, automotive starters and alternators,
compressors, conveyors, Go Kart wheels, skateboards, outdoor power
equipment and many other industrial applications.
How to Place an Order:
1. Send us your bearing inquiry, including your bearing models,
your quantity. If you have brand requirement, please tell us which
brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the
quantity of goods, we will give you different options of
transportation.
3. If you agree with our price, we will make proforma invoice for
payment
4. After payment is done, we will start to prepare bearings and
arrange shipmentProduct Details
This radial ball bearing features single-row alignment.
