1635 zz 1635 2RS Ball Bearing The General Extra Light Inch Series
Ball Bearing High Quality 3/4 Bore

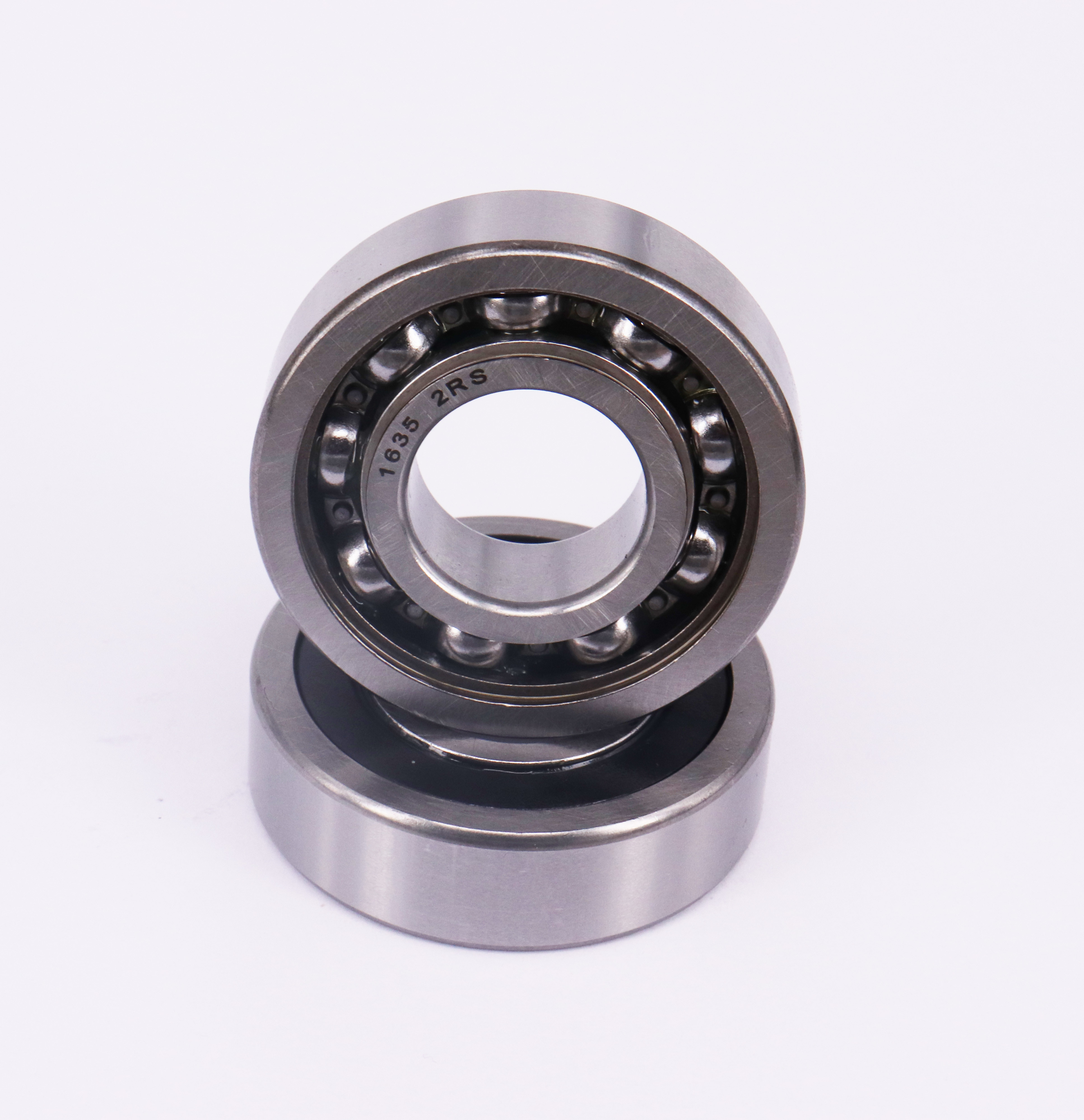

1635 ZZ 1635 2RS Deep Groove Ball Bearings
19.05*44.45*12.7mm Bearing Features:
Inner Ring Diameter (bore):0.75 Inch
Outer Ring Diameter:1.75 Inch
Width:0.5 Inch
Weight:0.0914KG
1635 2RS ZZ Deep Ball Bearing Description:
| Model Number | 1635-2RS ZZ |
| Structure: | Deep groove ball bearing |
| Inside Diameter: | 3/4 |
| Outside Diameter: | 1 53/4 |
| Thickness: | 1/2 |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
more models:
Bearing
NO. | Boundary dimensions(mm) | Load Rating(kN) |
Weight (kg) |
| d | D | B | Cr | Cor | |
| 1614 | 9.525 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0286 |
| 1615 | 11.112 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0267 |
| 1616 | 12.700 | 28.575 | 9.525 | 5.11 | 2.39 | 0.0247 |
| 1620 | 11.113 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0520 |
| 1621 | 12.700 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0490 |
| 1622 | 14.288 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0464 |
| 1623 | 15.875 | 34.925 | 11.112 | 7.64 | 3.72 | 0.0432 |
| 1628 | 15.875 | 41.275 | 12.700 | 9.57 | 4.79 | 0.0788 |
| 1630 | 19.050 | 41.275 | 12.700 | 9.38 | 5.03 | 0.0779 |
| 1633 | 15.875 | 44.450 | 12.700 | 9.38 | 5.03 | 0.100 |
| 1635 | 19.050 | 44.450 | 12.700 | 9.38 | 5.03 | 0.0914 |
| 1638 | 19.050 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1421 |
| 1639 | 20.638 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1380 |
| 1640 | 22.225 | 50.800 | 14.288 | 12.84 | 6.65 | 0.1306 |
| 1641 | 25.400 | 50.800 | 14.288 | 14.02 | 7.88 | 0.1090 |
| 1652 | 28.575 | 63.500 | 15.375 | 16.21 | 10.42 | 0.2288 |
| 1654 | 31.750 | 63.500 | 15.875 | 16.21 | 10.42 | 0.2056 |
| 1657 | 31.750 | 65.088 | 17.462 | 16.21 | 10.42 | 0..2386 |
| 1658 | 33.388 | 65.088 | 17.642 | 16.21 | 10.42 | 0.2359 |
Caracteristicas del products
1.Single-row bearing for supporting radial loads
2."Light" bearing structure for use in limited space applications
or for average loads
3.Shields on both sides of the bearing to keep lubricant in and
contaminants out
Its light bearing structure is for use in limited space
applications or for average loads. The bearing is shielded on both
sides for additional protection from debris, and other
contaminants. This 1600 Series Extra Light Inch series
double-sealed ball bearing is for use in applications that involve
combined radial and axial loads and a need for high running
accuracy and stiffness at high rotational speeds. Such applications
include clutches, drives, gearboxes, compressors, pumps, turbines,
and printing and textile machines, among others.
