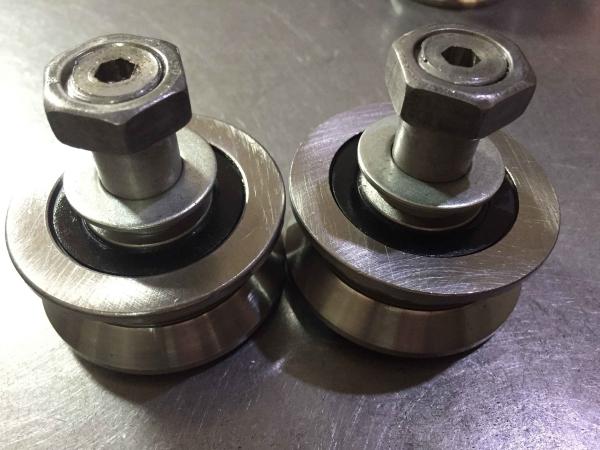

Custom Ball Bearings LV 203 ZZ 17*25*58mm Customized Bearing
Precision Low Frictional Resistance
LV 203 ZZ Custom Ball Bearings:
17*25*58mm Bearing Features:
Inner Ring Diameter (bore): 17mm
Outer Ring Diameter:25mm
Width:58mm
Basic Dynamic Load Rating Cr:14.66kN
Basic Static Load Rating Cor:9.1kN
Bearings Weight:325g
LV 203 ZZ Custom Ball Bearings Description:
| Model Number: | LV 203 ZZ |
| Inner diameter: | 17mm |
| Outer diameter: | 25mm |
| Width: | 58m |
| Bearing Weight: | 325g |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount
|
LV 203 ZZ Custom Ball Bearings:
more models:
Wheels No . |
Φdw
mm |
Bore
mm |
O.D.
mm |
Width
mm |
Width
mm | A |
Angle | Chamfer r/min
mm | Load |
Weight |
| SUNTHAI | Φdw | d | D | B | C | A | α | R/min | Cw(KN) | Cow(KN) | Kg |
| LV 20/7 ZZ | 10 | 7 | 22 | 11 | 11 | 14.5 | 120 | 0.3 | 3.78 | 2.05 | 17 |
| LV 20/8 ZZ | 10 | 8 | 30 | 14 | 14 | 18.1 | 120 | 0.3 | 5.13 | 2.67 | 49 |
| LV20/10ZZ | 10 | 10 | 30 | 14 | 14 | 18.1 | 120 | 0.3 | 5.13 | 2.67 | 48 |
| LV 202-38 ZZ | 10 | 15 | 38 | 17 | 17 | 22.25 | 120 | 0.5 | 8.47 | 5.37 | 87 |
| LV 202-40 ZZ | 10 | 15 | 40 | 18 | 18 | 22 | 120 | 0.5 | 8.47 | 5.37 | 110 |
| LV 201 ZZ | 20 | 12 | 41 | 20 | 20 | 28 | 120 | 0.3 | 8.47 | 5.37 | 130 |
| LV 201-14.2RS | 14 | 12 | 39.9 | 20.1 | 18 | 24 | 100 | 0.5 | 8.9 | 5 | 107 |
| LV 202-41 ZZ | 20 | 15 | 41 | 20 | 20 | 28 | 120 | 0.5 | 8.47 | 5.37 | 116 |
| LV 203 ZZ | 20 | 17 | 58 | 25 | 25 | 35 | 120 | 0.5 | 14.66 | 9.1 | 325 |
| LV 204-57 ZZ | 20 | 20 | 57 | 22 | 22 | 34.5 | 120 | 0.6 | 14.66 | 9.1 | 290 |
| LV 204-58 ZZ | 30 | 20 | 58 | 25 | 25 | 41 | 120 | 0.6 | 14.66 | 9.1 | 310 |
LV 203 ZZ Custom Ball Bearings Advantages:
1. Small resistance, long life and wide application
The V-shaped surface of LV (RV) series guide roller bearings has
been finely grinded. The surface roughness of the V-shaped groove
of the bearing reaches Ra0.32. The V-shaped groove of the bearing
has good parallelism with the installation plane of the inner ring.
The force is stable and the friction resistance is small.
2. Easy installation
After the bearing is equipped with eccentric shaft and concentric
shaft, the installation is very convenient. The appropriate preload
can be obtained by adjusting the eccentricity of the eccentric
bearing.
LV 203 ZZ Custom Ball Bearings Features:
1. The bearing is designed with double row angular contact ball
bearing internal structure and thicker outer ring, so that the
bearing has higher load-bearing capacity.
2. Bearings are made of grease bearing steel (AISI52100 or
stainless steel AISI440C) and processed by heat treatment and
precision grinding. They are high quality and versatile oils with
long life in the interior. Bearing dust-proof cover is made of
metal dust-proof cover. Bearings with communication shafts and
eccentric shafts can also be provided.
3. The V-groove bottom of the bearing outer ring has a knife
retracting groove, and other V-angle bearings can also be
customized.
LV 203 ZZ Custom Ball Bearings Working Principle:
1. Custom Ball Bearings can be divided into first generation,
second generation and third generation hub bearings according to
their structural forms.
2. The first generation hub bearing is mainly composed of inner
ring, outer ring, steel ball and cage. Its working principle is
shown in Figure 1. The working principle of the first, second and
third generation wheeled bearings is similar to that of ordinary
bearings.
3. They all use the rolling of steel balls in the inner ring, outer
ring or flange raceway to carry and rotate relatively, so as to
drive the car.
Packing Method:
We have multiple packages for shielded radial ball bearing LV 203
ZZ
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden
pallet
3. As customer's demand
Factory Photo:
How to Place an Order:
1. Send us your bearing inquiry, including your bearing models,
your quantity. If you have brand requirement, please tell us which
brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the
quantity of goods, we will give you different options of
transportation.
3. If you agree with our price, we will make proforma invoice for
payment
4. After payment is done, we will start to prepare bearings and
arrange shipment
Quality In Everything We Do:
Suppliers quality: working only with the best
Our Supplier Quality and Development (SQD) division guarantees the
flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production
All manufacturing facilities employ a Lean approach in
manufacturing, involving every team member in a philosophy of
continuous improvement. We have state-of-the-art production lines
in all our plants. The integrated manufacturing process controls
enable us to check 100% of the parts at every critical production
step.
OEM-Quality Products
We deliver our products to leading global manufacturers of
transmissions, axles, differentials, and fluid pumps amongst
others; these customers use our products directly or integrate them
into their Original Equipment.
FAQ
Q: Are you a trading company or a factory?
A: We have both. We are trading company and we have own factory.
Q: What is the delivery time if we place an order?
A: For small orders, our delivery time is 3 days. If the amount is
large, usually our delivery time is 7-20 days.
Q: What is your payment term?
A: We accept T/T, W/U, PayPal and L/C.
Q: Do you have a warranty on bearings?
Answer: In normal use, our bearing guarantee period is 1 year.
