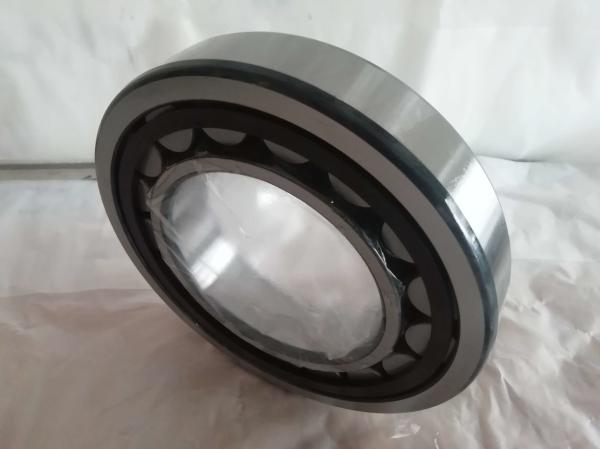

Plastic drum packaging Cylindrical Roller Bearings NU1021
110*170*28mm Precision Certified ISO9001
110*170*28mm Bearing Features:
Inner Ring Diameter (bore):110mm
Outer Ring Diameter:170mm
Width:28mm
NU1022 Cylindrical Roller Bearing Description:
| Model Number: | NU1022 |
| Inside Diameter: | 110mm |
| Outside Diameter: | 170mm |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount |
more models:
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number |
| d | D | B | rs min | rs1 min | Cr | Cor | Grease | Oil | (Approx.) | PYC |
| 25 | 47 | 12 | 0.6 | 0.3 | 15.1 | 14.1 | 16,000 | 19,000 | 0.092 | NU1005 |
| 30 | 55 | 13 | 1 | 0.6 | 19.7 | 19.6 | 14,000 | 16,000 | 0.13 | NU1006 |
| 35 | 62 | 14 | 1 | 0.6 | 22.6 | 23.2 | 12,000 | 15,000 | 0.179 | NU1007 |
| 40 | 68 | 15 | 1 | 0.6 | 27.3 | 29.0 | 11,000 | 13,000 | 0.22 | NU1008 |
| 45 | 75 | 16 | 1 | 0.6 | 31.0 | 34.0 | 9,900 | 12,000 | 0.28 | NU1009 |
| 50 | 80 | 16 | 1 | 0.6 | 32.0 | 36.0 | 8,900 | 11,000 | 0.295 | NU1010 |
| 55 | 90 | 18 | 1.1 | 1 | 37.5 | 44.0 | 8,200 | 9,700 | 0.442 | NU1011 |
| 60 | 95 | 18 | 1.1 | 1 | 40.0 | 48.5 | 7,500 | 8,800 | 0.474 | NU1012 |
| 65 | 100 | 18 | 1.1 | 1 | 41.0 | 51.0 | 7,000 | 8,200 | 0.485 | NU1013 |
| 70 | 110 | 20 | 1.1 | 1 | 58.5 | 70.5 | 6,500 | 7,600 | 0.699 | NU1014 |
| 75 | 115 | 20 | 1.1 | 1 | 60.0 | 74.5 | 6,100 | 7,100 | 0.738 | NU1015 |
| 80 | 125 | 22 | 1.1 | 1 | 72.5 | 90.5 | 5,700 | 6,700 | 0.98 | NU1016 |
| 85 | 130 | 22 | 1.1 | 1 | 74.5 | 95.5 | 5,400 | 6,300 | 1.03 | NU1017 |
| 90 | 140 | 24 | 1.5 | 1.1 | 88.0 | 114 | 5,100 | 5,900 | 1.33 | NU1018 |
| 95 | 145 | 24 | 1.5 | 1.1 | 90.5 | 120 | 4,800 | 5,600 | 1.4 | NU1019 |
| 100 | 150 | 24 | 1.5 | 1.1 | 93.0 | 126 | 4,600 | 5,400 | 1.45 | NU1020 |
| 105 | 160 | 26 | 2 | 1.1 | 105 | 142 | 4,300 | 5,100 | 1.84 | NU1021 |
| 110 | 170 | 28 | 2 | 1.1 | 131 | 174 | 4,100 | 4,800 | 2.33 | NU1022 |
| 120 | 180 | 28 | 2 | 1.1 | 139 | 191 | 3,800 | 4,400 | 2.44 | NU1024 |
| 130 | 200 | 33 | 2 | 1.1 | 172 | 238 | 3,400 | 4,000 | 3.69 | NU1026 |
| 140 | 210 | 33 | 2 | 1.1 | 176 | 250 | 3,200 | 3,800 | 4.05 | NU1028 |
| 150 | 225 | 35 | 2.1 | 1.5 | 202 | 294 | 3,000 | 3,500 | 4.77 | NU1030 |
NU1022 Cylindrical Roller Bearing Applications
1. Large and medium-sized motors, locomotives and vehicles, machine
tool spindles
2. Internal combustion engines, generators, gas turbines, reducers,
rolling mills
3. Vibration screens and lifting and transportation machinery.
NU1022 Cylindrical Roller Bearing Advantages:
1. Cylindrical roller and raceway are linear contact bearings. Load
capacity is large, mainly bearing radial load.
2. The friction between the rolling element and the retaining edge
of the ring is small and suitable for high-speed rotation.
3. Generally, steel plate stamping cage or copper alloy car cage
are used.
NU1020 Cylindrical Roller Bearing Matters Needing Attention:
1.Vibration can be measured by using special bearing vibration
measuring device (frequency analyzer, etc.) and abnormal conditions
can be inferred by frequency distribution. The measured values vary
depending on the operating conditions of the bearings or the
installation position of the sensors.
2.If the temperature of the bearing exceeds 125 C for a long time,
the service life of the bearing will be reduced. The causes of high
temperature bearing include: insufficient lubrication or excessive
lubrication, impurities in bearing raceway, high limit speed,
long-term overload operation of bearing, etc.
Shipping method:
1. For small amount (GW<100KGS), we can send you by express,
such as DHL, Fedex, TNT etc
2. For GW between 100KGS to 500KGS, we can send you by sea shipping
or air shipping
3. For large amount (GW > 500KGS), we can send you by sea
Factory Photo:
Quality In Everything We Do:
1.Suppliers quality: working only with the best
Our Supplier Quality and Development (SQD) division guarantees the
flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production
All manufacturing facilities employ a Lean approach in
manufacturing, involving every team member in a philosophy of
continuous improvement. We have state-of-the-art production lines
in all our plants. The integrated manufacturing process controls
enable us to check 100% of the parts at every critical production
step.
2.OEM-Quality Products
We deliver our products to leading global manufacturers of
transmissions, axles, differentials, and fluid pumps amongst
others; these customers use our products directly or integrate them
into their Original Equipment.
Working principle:
1.Cylindrical Roller bearings can bear radial load, radial load and
axial load.
2.When it only bears radial load, the contact Angle is zero. When
the deep groove ball bearing has a large radial clearance.
3.It has the performance of angular contact bearing and can bear a
large axial load.
FAQ
Q: Are you a trading company or a factory?
A: We have both. We are trading company and we have own factory.
Q: What is the delivery time if we place an order?
A: For small orders, our delivery time is 3 days. If the amount is
large, usually our delivery time is 7-20 days.
Q: What is your payment term?
A: We accept T/T, W/U, PayPal and L/C.
Q: Do you have a warranty on bearings?
Answer: In normal use, our bearing guarantee period is 1 year.
