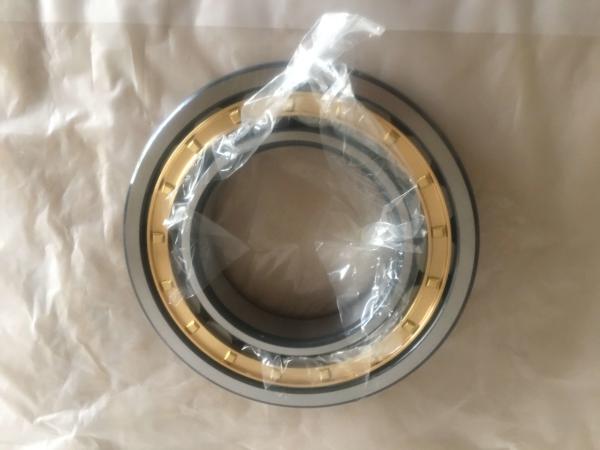

NSK technology Gcr15 P6 High Load High Speed Running Cylindrical Roller Bearings NU204E 20 47 14mm

20*47*14mm Bearing Features:

Inner Ring Diameter (bore):20mm

Outer Ring Diameter:47mm

Width:14mm

Dynamic load:27.5Kn

The static load:24.5Kn

NU204E Cylindrical Roller Bearing Description:

more models:

NU204E Cylindrical Roller Bearing Features:

1. Cylindrical roller and raceway are in line contact, and the radial load capacity is large. It is not only suitable for bearing heavy load and impact load, but also suitable for high-speed rotation.

2. The raceway and rolling body of cylindrical roller bearing are geometrically shaped.

3. The improved design not only improves the axial bearing capacity of the bearing, but also improves the lubrication condition of the contact area between the end face of the roller and the end face of the roller

4. Improves the service performance of the bearing.

Applications:
1. Large and medium-sized motors, locomotives and vehicles, machine tool spindles
2. Internal combustion engines, generators, gas turbines, reducers, rolling mills
3. Vibration screens and lifting and transportation machinery.

NU204E Cylindrical Roller Bearing Description:

Single row cylindrical roller bearing for applications that support high radial loads

C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F

Non-locating bearing (two ribs on the outer ring, none on the inner ring) for allowing outer and inner rings to axially displace relative to each other from the central position

Polyamide cage is lightweight and produces less noise and vibrations than brass cages

Removable inner ring in open bearing allows for lubrication in place

NJ1012 Cylindrical Roller Bearing Structural Features:

1.The inner and outer rings are made of high purity bearing steel or double vacuum high temperature heat-resistant bearing steel

2.Combined with special heat treatment process, cold treatment process and material modification technology, which greatly improves the fatigue life of the series of bearings.

3.Both single-row and double-row roller bearings have cylindrical and tapered holes, and are installed on the spindle.

4.Later, it is easier to adjust the radial internal clearance to improve the spindle rotation accuracy and radial stiffness. Tapered hole bearings are generally used.

Packing method:

We have multiple packages for shielded radial ball bearing NJ1010

1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet

2. Individual package: individual paper box + paper carton + wooden pallet

3. As customer's demand

Factory Photo:

Quality In Everything We Do:

1.Suppliers quality: working only with the best

Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
Process quality: accurate, on-time production

All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.

2.OEM-Quality Products

We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory and professional manufactuer of bearings.

Q2: Can I get a sample to check out the quality ?

A: Sure, free samples are available for stock products if you can payfor the shipping cost.

Q3: Can you do OEM to print my logo/brand on the products ?

A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.

Q4: How long is your delivery time ?

A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
