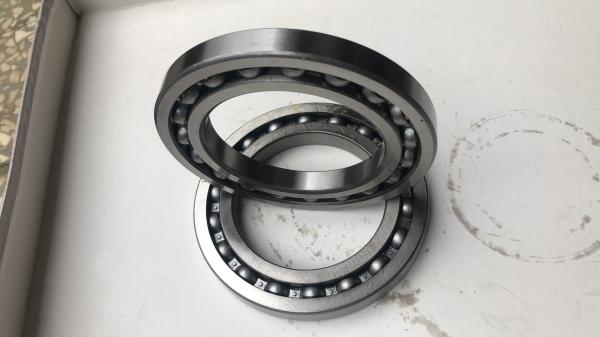

Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer

    Buy cheap Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer from wholesalers

    Buy cheap Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer from wholesalers
    • Buy cheap Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer from wholesalers

    Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer

    Ask Lasest Price
    Brand Name : DEEG
    Model Number : 16024
    Certification : ISO9001 , ISO14001
    Price : USDN1/ Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000 Piece/Pieces per Month
    Delivery Time : 5-10Days
    • Product Details
    • Company Profile

    Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer

    NSK For Motor Nonstandard Deep Groove Ball Bearings 16024 Steel Retainer 120*180*19mm


    16024 Nonstandard Deep Groove Ball Bearings


    120 180 19mm Bearing Features:


    Inner Ring Diameter (bore): 4.724 Inch


    Outer Ring Diameter: 7.087 Inch


    Width:0.748 Inch


    16024 Ball Bearing Description:


    Model Number16024
    Structure:Deep groove ball bearing
    Inside Diameter:120mm
    Outside Diameter:180mm
    Thickness:19mm
    Seal Type:Double Shielded, 2RS
    Material:Chrome steel, Gcr15
    Precision Rating:P0-P5
    Brand:TOPE or other brands
    Payment term:T/T,L/C,Western Union, PayPal
    Delivery time:1-5 days for small amout, 15-40 days for big amount

    16024 Ball Bearing


    Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer


    more models:


    Bearing
    NO.
    Boundary dimensions(mm)Load Rating(kN)

    Weight

    (kg)

    dDBCrCor
    16001122875.082.380.019
    16002153285.602.550.025
    16003173586.823.380.027
    16004204287.904.450.050
    16005254788.425.150.060
    160063055911.26.250.085
    160073562911.58.800.100
    160084068912.510.20.130
    1600945751012.810..20.170
    1601050801016.213.20.180
    1601155901119.416.20.260
    1601260951119.917.50.280
    16013651001120.518.60.300
    16014701101327.925.00.430
    16015751151328.726.80.46
    16016801251433.131.40.600
    16017851301434.033.30.630
    16018901401641.539.30.850
    16019961451642.741.90.890
    160201001501643.844.30.910
    16021105160185250.51.24
    160221101701957.556.51.51
    160241201801956.557.51.6
    160261302002275.577.52.4
    160281402102277.582.52.84
    160301502252484913.62
    1603216024025991084.20
    16034170260281141265.71
    16036180280311451577.50
    16038190290311491687.78
    160402003103416118010.00


    16024 Nonstandard Deep Groove Ball Bearings Advantages:


    1. High operation precision;


    2. Most rolling bearings can also be subjected to radial and axial loads, so the combined structure of bearings is simple;


    3. For axle diameters of the same size, the width of rolling bearing is smaller than that of sliding bearing, which can make the axial structure of machinery compact;


    4. Under ordinary conditions, the efficiency of rolling bearing is equal to that of hydrodynamic smooth bearing, but higher than that of inclusion smooth bearing.


    Shipping Methods:


    1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc


    2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


    3. For large amount (GW > 500KGS), we can send you by sea


    Shipping Photo:


    Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer


    Quality In Everything We Do:


    1.Suppliers quality: working only with the best


    Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
    Process quality: accurate, on-time production


    All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.


    2.OEM-Quality Products


    We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.


    Factory Photos:


    Motor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel RetainerMotor Usage 120*180*19mm Ball Bearing With Groove In Outer Race 16024 Steel Retainer


    How to place an order:


    1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


    2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


    3. If you agree with our price, we will make proforma invoice for payment.


    4. After payment is done, we will start to prepare bearings and arrange shipment.


    FAQ:


    Q: Are you a trading company or a factory?


    A: We have both. We are trading company and we have own factory.


    Q: What is the delivery time if we place an order?


    A: For small orders, our delivery time is 3 days. If the amount is large, usually our delivery time is 7-20 days.


    Q: What is your payment term?


    A: We accept T/T, W/U, PayPal and L/C.


    Q: Do you have a warranty on bearings?


    Answer: In normal use, our bearing guarantee period is 1 year.
