16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001

    Buy cheap 16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001 from wholesalers

    Buy cheap 16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001 from wholesalers
    • Buy cheap 16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001 from wholesalers

    16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001

    Ask Lasest Price
    Brand Name : DEEG
    Model Number : 16018
    Certification : ISO9001 , ISO14001
    Price : USDN1/ Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000 Piece/Pieces per Month
    Delivery Time : 5-10Days
    • Product Details
    • Company Profile

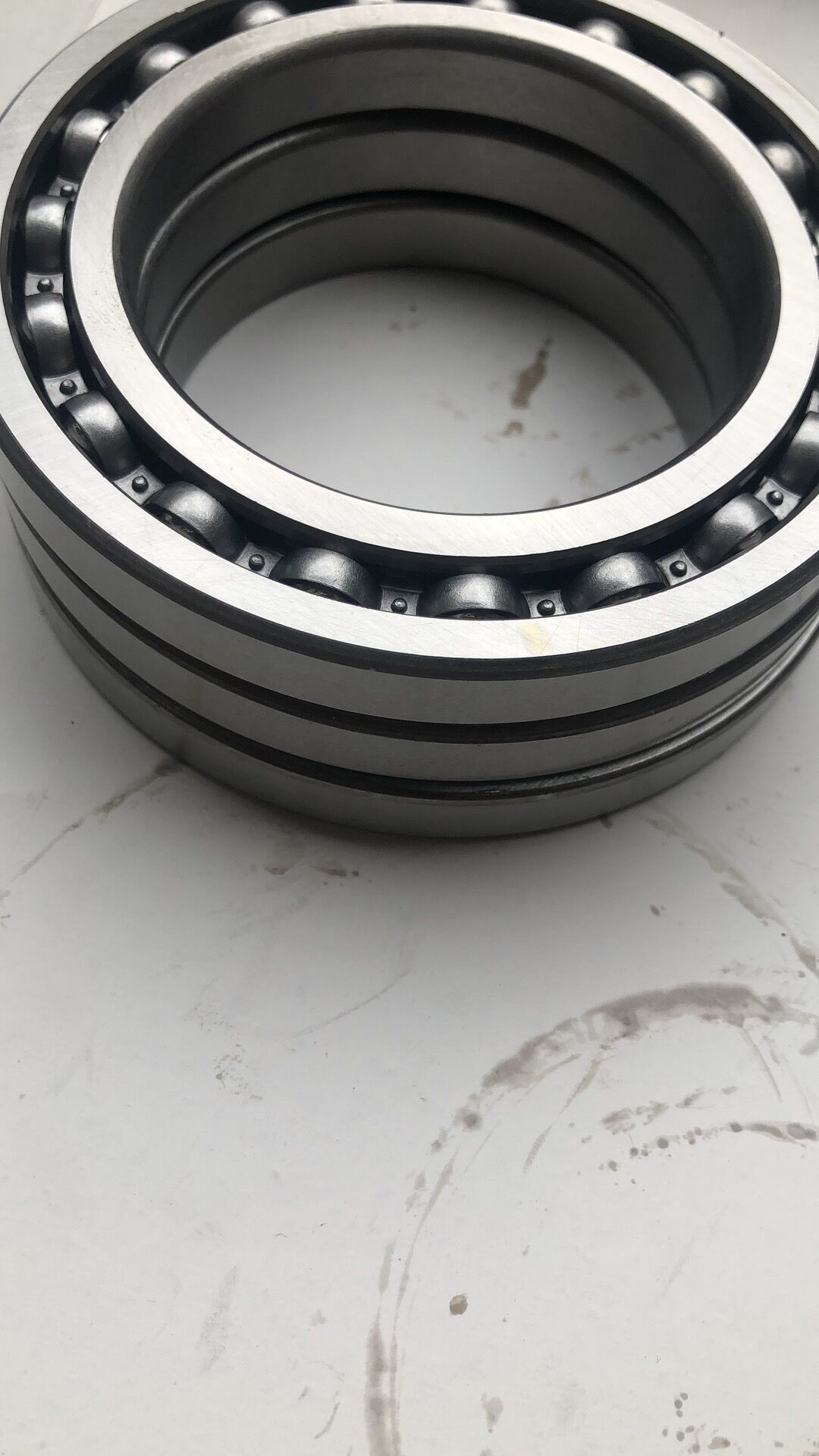

    16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001

    Made in China GCR15 Nonstandard Deep Groove Ball Bearings 16018 90*140*16mm Certified ISO9001


    16018 Nonstandard Deep Groove Ball Bearings


    90 140 16mm Bearing Features:


    Inner Ring Diameter (bore):3.543 inch


    Outer Ring Diameter:5.512 inch


    Width:0.630 inch


    Basic Dynamic Load Rating Cr: 16.2kN


    Basic Static Load Rating Cor:13.2kN


    Bearings Weight:0.170KG


    16018 Ball Bearing Description:


    Model Number16018
    Structure:Deep groove ball bearing
    Inside Diameter:90mm
    Outside Diameter:140mm
    Thickness:16mm
    Seal Type:Double Shielded, 2RS
    Material:Chrome steel, Gcr15
    Precision Rating:P0-P5
    Brand:TOPE or other brands
    Payment term:T/T,L/C,Western Union, PayPal
    Delivery time:1-5 days for small amout, 15-40 days for big amount

    16018 Ball Bearing


    16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001


    more models:


    Bearing
    NO.
    Boundary dimensions(mm)Load Rating(kN)

    Weight

    (kg)

    dDBCrCor
    16001122875.082.380.019
    16002153285.602.550.025
    16003173586.823.380.027
    16004204287.904.450.050
    16005254788.425.150.060
    160063055911.26.250.085
    160073562911.58.800.100
    160084068912.510.20.130
    1600945751012.810..20.170
    1601050801016.213.20.180
    1601155901119.416.20.260
    1601260951119.917.50.280
    16013651001120.518.60.300
    16014701101327.925.00.430
    16015751151328.726.80.46
    16016801251433.131.40.600
    16017851301434.033.30.630
    16018901401641.539.30.850
    16019961451642.741.90.890
    160201001501643.844.30.910
    16021105160185250.51.24
    160221101701957.556.51.51
    160241201801956.557.51.6
    160261302002275.577.52.4
    160281402102277.582.52.84
    160301502252484913.62
    1603216024025991084.20
    16034170260281141265.71
    16036180280311451577.50
    16038190290311491687.78
    160402003103416118010.00

    16018 Nonstandard Deep Groove Ball Bearings Working Describe:


    1. Nonstandard deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings.


    2. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.


    3. Nonstandard deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds.


    Shipping Methods:


    1. For small amount (GW<100KGS), we can send you by express, such as DHL, Fedex, TNT etc


    2. For GW between 100KGS to 500KGS, we can send you by sea shipping or air shipping


    3. For large amount (GW > 500KGS), we can send you by sea


    16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001

    16018 Nonstandard Deep Groove Ball Bearings Advantages:


    1. Improved bearing life reliability.


    2. Reduced friction, vibration and noise during operation.


    3. 100% vibration/noise testing for fractional HP to high HP electrical applications.


    4. Globally interchangeable for use in existing applications.


    5. Best seal solutions extend equipment life in contaminated applications.


    16018 Nonstandard Deep Groove Ball Bearings Working Features:


    1. High quality through hardened bearing steel used for basic construction.


    2. Optimized raceway geometry and super finishing.


    3. High precision accuracy and manufacturing consistency.


    4. Proprietary high performance sealing options.


    5. Premium grease as lubrication system.


    Factory Photos:


    16018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO900116018 90*140*16mm Low Friction Ball Bearing Single Row Deep Groove Certified ISO9001


    Quality In Everything We Do:


    Suppliers quality: working only with the best


    Our Supplier Quality and Development (SQD) division guarantees the flawless supply of highest quality raw materials and components.
    Process quality: accurate, on-time production


    All manufacturing facilities employ a Lean approach in manufacturing, involving every team member in a philosophy of continuous improvement. We have state-of-the-art production lines in all our plants. The integrated manufacturing process controls enable us to check 100% of the parts at every critical production step.


    OEM-Quality Products


    We deliver our products to leading global manufacturers of transmissions, axles, differentials, and fluid pumps amongst others; these customers use our products directly or integrate them into their Original Equipment.


    How to place an order:


    1. Send us your bearing inquiry, including your bearing models, your quantity. If you have brand requirement, please tell us which brand do you need as well.


    2. We will quote bearing price for you. Moreover, According to the quantity of goods, we will give you different options of transportation.


    3. If you agree with our price, we will make proforma invoice for payment.


    4. After payment is done, we will start to prepare bearings and arrange shipment.


    FAQ:


    Q1: Are you trading company or manufacturer ?


    A: We are factory and professional manufactuer of bearings.


    Q2: Can I get a sample to check out the quality ?


    A: Sure, free samples are available for stock products if you can payfor the shipping cost.


    Q3: Can you do OEM to print my logo/brand on the products ?


    A: Yes, we can print your logo/brand on the products, you just need to send us your logo/brand files, we will show you how it looks like before shipping out.


    Q4: How long is your delivery time ?


    A: Generally we have regular stocks for standard bearings that can be shippedin 2 days after your payment. It will take 15-35 days for new production order, which depends on your order quantity.
