Bearing Steel GCR15 5204-2RS Double Row Angular Contact Ball
Bearing High Mechanical Efficiency

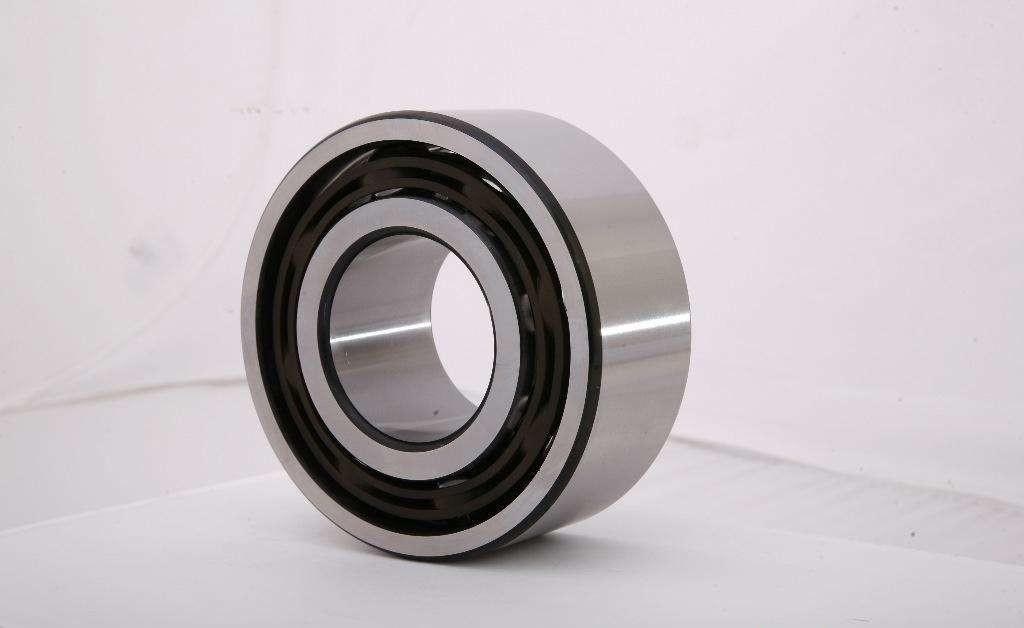

5204-2RS Double Row Angular Contact Ball Bearing
20*47*20.6mm Bearing Features:
Inner Ring Diameter (bore):0.787 Inch
Outer Ring Diameter:1.850 Inch
Width:0.811 Inch
Dynamic load:19.7 KN
The static load:12.6 KN
Bearing Weight:0.120KG
5204-2RS Double Row Angular Contact Ball Bearing Description:
| Model Number | 5204-2RS |
| Inside Diameter: | 25/32 |
| Outside Diameter: | 1 27/32 |
| Thickness: | 13/16 |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount |
5204-2RS Double Row Angular Contact Ball Bearing
more models:
| Bearing NO. | Boundary dimensions | Load Rating | Limiting Speed | Weight(Kg) |
| Open | With shields | With seals | d | D | B | гmin | Open | Seal | Grease | Oil |
| Cr | Cor | Cr | Cor | Z,ZZ | RS,2RS | Z |
| 3200 | | | 10 | 30 | 14.3 | 0.6 | 7.35 | 5.35 | | | 15000 | | 20000 | 0.052 |
| 3201 | | | 12 | 32 | 15.9 | 0.6 | 9.70 | 7.15 | | | 14000 | | 18000 | 0.063 |
| 3202 | | |
15 | 35 | 15.9 | 0.6 | 9.70 | 7.45 | | | 12000 | | 16000 | 0.072 |
| 3302 | | | 42 | 19 | 1 | 15.2 | 11.9 | | | 10000 | | 14000 | 0.132 |
| 3203 | | |
17 | 40 | 17.5 | 0.6 | 13.8 | 10.8 | | | 11000 | | 14000 | 0.100 |
| 5203 | 5203ZZ | 5203 2RS | 40 | 17.5 | 0.6 | 13.2 | 8.15 | 12.7 | 8.35 | 11000 | 11000 | 14000 | 0.091 |
| 3303 | | | 47 | 22.5 | 1 | 21.7 | 17.1 | | | 9400 | | 13000 | 0.192 |
| 3204 | | |
20 | 47 | 20.6 | 1 | 17.2 | 15.0 | | | 9000 | | 12000 | 0.170 |
| 5204 | 5204ZZ | 5204 2RS | 47 | 20.6 | 1 | 19.7 | 12.6 | 16.0 | 10.8 | 8800 | 8800 | 12000 | 0.120 |
| 3304 | | | 52 | 22.2 | 1.1 | 20.8 | 18.4 | | | 8200 | | 11000 | 0.230 |
| 5304 | 5304ZZ | 5304 2RS | 52 | 22.2 | 1.1 | 24.7 | 15.0 | 19.8 | 12.8 | 8300 | 8300 | 11000 | 0.230 |
| 3205 | | |
25 | 52 | 20.6 | 1 | 18.9 | 18.2 | | | 7800 | | 10000 | 0.190 |
| 5205 | 5205ZZ | 5205 2RS | 52 | 20.6 | 1 | 21.4 | 14.8 | 18.9 | 13.8 | 7700 | 7700 | 10000 | 0.190 |
| 3305 | | | 62 | 25.4 | 1.1 | 28.9 | 26.5 | | | 6800 | | 9100 | 0.369 |
| 5305 | 5305ZZ | 5305 2RS | 62 | 25.4 | 1.1 | 32.7 | 20.8 | 27.5 | 18.5 | 6900 | 6900 | 9200 | 0.340 |
| 3206 | | |
30 | 62 | 23.8 | 1 | 27.3 | 27.0 | | | 6500 | | 8700 | 0.320 |
| 5206 | 5206ZZ | 5206 2RS | 62 | 23.8 | 1 | 29.7 | 21.3 | 25.4 | 18.3 | 6400 | 6400 | 8600 | 0.290 |
| 3306 | | | 72 | 30.2 | 1.1 | 38.1 | 36.1 | | | 5800 | | 7800 | 0.585 |
| 5306 | 5306ZZ | 5306 2RS | 72 | 30.2 | 1.1 | 41.0 | 28.5 | 34.3 | 25.2 | 5800 | 5800 | 7700 | 0.510 |
| 3207 | | |
35 | 72 | 27 | 1.1 | 36.8 | 37.5 | | | 5600 | | 7500 | 0.480 |
| 5207 | 5207ZZ | 5207 2RS | 72 | 27 | 1.1 | 39.2 | 29.0 | 31.7 | 24.6 | 5500 | 5500 | 7300 | 0.430 |
| 3307 | | | 80 | 34.9 | 1.5 | 48.6 | 46.8 | | | 5200 | | 7000 | 0.816 |
| 5307 | 5307ZZ | 53072RS | 80 | 34.9 | 1.5 | 51.2 | 36.2 | 46.1 | 32.8 | 5100 | 5100 | 6800 | 0.790 |
| 3208 | | |
40 | 80 | 30.2 | 1.1 | 42.0 | 43.9 | | | 5000 | | 6700 | 0.650 |
| 5208 | 5208ZZ | 5208 2RS | 80 | 30.2 | 1.1 | 44.4 | 33.6 | 36.5 | 29.1 | 5000 | 5000 | 6700 | 0.570 |
| 3308 | | | 90 | 36.5 | 1.5 | 54.1 | 53.8 | | | 4600 | | 6100 | 1.07 |
| 5308 | 5308ZZ | 5308 2RS | 90 | 36.5 | 1.5 | 62.7 | 45.4 | 51.4 | 37.6 | 4600 | 4600 | 6100 | 1.05 |
| 3209 | | |
45 | 85 | 30.2 | 1.1 | 45.4 | 51.4 | | | 4600 | | 6100 | 0.710 |
| 5209 | 5209ZZ | 5209 2RS | 85 | 30.2 | 1.1 | 49.9 | 38.4 | 41.7 | 33.9 | 4600 | 4600 | 6100 | 0.620 |
| 3309 | | | 100 | 39.7 | 1.5 | 66.1 | 67.3 | | | 4100 | | 5500 | 1.42 |
| 5309 | 5309ZZ | 5309 2RS | 100 | 39.7 | 1.5 | 75.1 | 55.7 | 68.9 | 51.4 | 4100 | 4100 | 5500 | 1.42 |
5204-2RS Double Row Angular Contact Ball Bearing Advantages:
1. Good reliability and long service life
2. Large rated load
3. Good shock resistance
4. Excellent sealing performance
5. High efficiency
5204-2RS Double Row Angular Contact Ball Bearing Description:
1. The design of double row angular contact ball bearings is
basically the same as that of single row angular contact ball
bearings, but only takes up less axial space.
2. Double row angular contact ball bearings can withstand radial
loads and axial loads acting in two directions. It can limit the
biaxial displacement of the shaft or shell, and the contact angle
is 30 degrees.
3. It can provide high rigidity bearing configuration and can
withstand overturning moment.
Shipping Method:
1. For small amount (GW<100KGS), we can send you by express,
such as DHL, Fedex, TNT etc
2. For GW between 100KGS to 500KGS, we can send you by sea shipping
or air shipping
3. For large amount (GW > 500KGS), we can send you by sea
Factory Photo:
Structural classification:
1.Standard design of type A bearings with outer diameter less than
or equal to 90 mm. There is no gap in the ball, so it can bear the
same two-way axial load. With light glass fiber reinforced nylon 66
cage, the bearing temperature rise is very small.
2.Standard design of type B bearing with diameter greater than 90
mm. On one side, there is a ball-loading gap, which is equipped
with steel stamping cage or brass solid cage.
3.Type C is a reinforced structure, with a filling gap on one side,
more steel balls can be loaded, so the bearing capacity is higher.
4.Double row angular contact ball bearings with dustproof cover on
both sides and seal ring on both sides can be designed with
dustproof cover (non-contact type) or seal ring (contact type) on
both sides. The interior of sealed bearing is filled with anti-rust
lithium grease, and the operating temperature is generally - 30
~+110 C.
How to place an order:
1. Send us your bearing inquiry, including your bearing models,
your quantity. If you have brand requirement, please tell us which
brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the
quantity of goods, we will give you different options of
transportation.
3. If you agree with our price, we will make proforma invoice for
payment
4. After payment is done, we will start to prepare bearings and
arrange shipment
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory and professional manufactuer of bearings.
Q2: Can I get a sample to check out the quality ?
A: Sure, free samples are available for stock products if you can
payfor the shipping cost.
Q3: Can you do OEM to print my logo/brand on the products ?
A: Yes, we can print your logo/brand on the products, you just need
to send us your logo/brand files, we will show you how it looks
like before shipping out.
Q4: How long is your delivery time ?
A: Generally we have regular stocks for standard bearings that can
be shippedin 2 days after your payment. It will take 15-35 days for
new production order, which depends on your order quantity.
