Made In Japan Gcr15 Singel Row Angular Contact Ball Bearing 7208B
For Electrical Machinery Wheel ISO9001

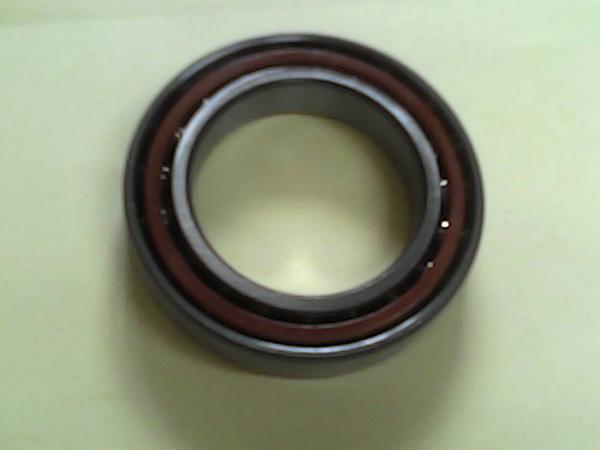

7208B Singel Row Angular Contact Ball Bearing
40*80*18mm Bearing Features:
Inner Ring Diameter (bore):40mm
Outer Ring Diameter:80mm
Width:18mm
Dynamic load:32
The static load:23.2
Bearing Weight:0.367KG
7208B Singel Row Angular Contact Ball Bearing Description:
| Model Number | 7208B |
| Inside Diameter: | 40mm |
| Outside Diameter: | 80mm |
| Thickness: | 18mm |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount |
7208B Singel Row Angular Contact Ball Bearing
more models:
| Main dimensions | Model | rs | r1s | Weight | Setting load | Limit speed |
| d | D | B | | min | min | kg | Cr(KN) | Cor(KN) | min-1 |
| 10 | 30 | 9 | 7200B.TVP | 0.6 | 0.3 | 0.032 | 5 | 2.5 | 32000 |
| 12 | 32 | 10 | 7201B.TVP | 0.6 | 0.3 | 0.035 | 6.95 | 3.4 | 28000 |
| | 37 | 12 | 7301B.TVP | 1 | 0.6 | 0.06 | 10.6 | 5 | 24000 |
| 15 | 35 | 11 | 7202B.TVP | 0.6 | 0.3 | 0.044 | 8 | 4.3 | 24000 |
| | 42 | 13 | 7302B.TVP | 1 | 0.6 | 0.082 | 12.9 | 6.55 | 20000 |
| 17 | 40 | 12 | 7203B.TVP | 0.6 | 0.6 | 0.065 | 10 | 5.5 | 20000 |
| | 47 | 14 | 7303B.TVP | 1 | 0.6 | 0.109 | 16 | 8.3 | 18000 |
| 20 | 47 | 14 | 7204B.TVP | 1 | 0.6 | 0.104 | 13.4 | 7.65 | 18000 |
| | 52 | 15 | 7304B.TVP | 1.1 | 0.6 | 0.143 | 19 | 10.4 | 17000 |
| 25 | 52 | 15 | 7205B.TVP | 1 | 0.6 | 0.127 | 14.6 | 9.3 | 16000 |
| | 62 | 17 | 7305B.TVP | 1.1 | 0.6 | 0.223 | 26 | 15 | 14000 |
| 30 | 62 | 16 | 7206B.TVP | 1 | 0.6 | 0.196 | 20.4 | 13.4 | 13000 |
| | 72 | 19 | 7306B.TVP | 1.1 | 0.6 | 0.341 | 32.5 | 20 | 11000 |
| 35 | 72 | 17 | 7207B.TVP | 1.1 | 0.6 | 0.282 | 27 | 18.3 | 11000 |
| | 80 | 21 | 7307B.TVP | 1.5 | 1 | 0.447 | 39 | 25 | 9500 |
| 40 | 80 | 18 | 7208B.TVP | 1.1 | 0.6 | 0.367 | 32 | 23.2 | 9500 |
| | 90 | 23 | 7308B.TVP | 1.5 | 1 | 0.609 | 50 | 32.5 | 8500 |
| 45 | 85 | 19 | 7209B.TVP | 1.1 | 0.6 | 0.405 | 36 | 26.5 | 8500 |
| | 100 | 25 | 7309B.TVP | 1.5 | 1 | 0.812 | 60 | 40 | 7500 |
| 50 | 90 | 20 | 7210B.TVP | 1.1 | 0.6 | 0.458 | 37.5 | 28.5 | 8000 |
| | 110 | 27 | 7310B.TVP | 2 | 1 | 1.05 | 69.5 | 47.5 | 7000 |
| 55 | 100 | 21 | 7211B.TVP | 1.5 | 1 | 0.604 | 46.5 | 36 | 7000 |
| | 120 | 29 | 7311B.TVP | 2 | 1 | 1.38 | 78 | 56 | 6300 |
| 60 | 110 | 22 | 7212B.TVP | 1.5 | 1 | 0.78 | 56 | 44 | 6300 |
| | 130 | 31 | 7312B.TVP | 2.1 | 1.1 | 1.72 | 90 | 65.5 | 5600 |
| 65 | 120 | 23 | 7213B.TVP | 1.5 | 1 | 1 | 64 | 53 | 6000 |
| | 140 | 33 | 7313B.TVP | 2.1 | 1.1 | 2.12 | 102 | 75 | 5300 |
| 70 | 125 | 24 | 7214B.TVP | 1.5 | 1 | 1.08 | 69.5 | 58.5 | 5600 |
| | 150 | 35 | 7314B.TVP | 2.1 | 1.1 | 2.57 | 114 | 863.5 | 5000 |
| 75 | 130 | 25 | 7215B.TVP | 1.5 | 1 | 1.16 | 68 | 58.5 | 5300 |
| | 160 | 37 | 7315B.TVP | 2.1 | 1.1 | 3.08 | 127 | 100 | 4500 |
| 80 | 140 | 26 | 7216B.TVP | 2 | 1 | 1.42 | 80 | 69.5 | 5000 |
| | 170 | 39 | 7316B.TVP | 2.1 | 1.1 | 3.66 | 140 | 114 | 4300 |
| 85 | 150 | 28 | 7217B.TVP | 2 | 1 | 1.82 | 90 | 80 | 4500 |
| | 180 | 41 | 7317B.TVP | 3 | 1.1 | 4.26 | 150 | 127 | 4000 |
| 90 | 160 | 30 | 7218B.TVP | 2 | 1 | 2.21 | 106 | 93 | 4300 |
| | 190 | 43 | 7318B.TVP | 3 | 1.1 | 4.99 | 160 | 140 | 3800 |
| 95 | 170 | 32 | 7219B.TVP | 2.1 | 1.1 | 2.63 | 116 | 100 | 4000 |
| | 200 | 45 | 7319B.TVP | 3 | 1.1 | 5.77 | 173 | 153 | 3800 |
| 100 | 180 | 34 | 7220B.TVP | 2.1 | 1.1 | 3.16 | 129 | 114 | 3800 |
| | 225 | 49 | 7320B.TVP | 3 | 1.1 | 7.16 | 193 | 180 | 3600 |
| 105 | 190 | 36 | 7221B.TVP | 2.1 | 1.1 | 4.18 | 143 | 129 | 6000 |
| | 225 | 49 | 7321B.TVP | 3 | 1.1 | 9 | 200 | 193 | 5300 |
| 110 | 200 | 38 | 7222B.TVP | 2.1 | 1.1 | 4.44 | 153 | 143 | 3600 |
| | 240 | 50 | 7322B.TVP | 3 | 1.1 | 9.73 | 224 | 224 | 3400 |
| 120 | 215 | 40 | 7224B.TVP | 2.1 | 1.1 | 5.31 | 166 | 160 | 3400 |
| | 260 | 55 | 7324B.TVP | 3 | 1.1 | 12.4 | 250 | 260 | 3200 |
| 130 | 230 | 40 | 7226B.TVP | 3 | 1.1 | 6.12 | 186 | 190 | 3200 |
| | 280 | 58 | 7326B.TVP | 4 | 1.5 | 15.1 | 275 | 300 | 3000 |
| 140 | 250 | 42 | 7228B.TVP | 3 | 1.1 | 8.55 | 196 | 212 | 4800 |
| | 320 | 65 | 7328B.TVP | 4 | 1.5 | 20.4 | 300 | 340 | 4300 |
| 150 | 270 | 45 | 7230B.TVP | 3 | 1.1 | 10.9 | 224 | 255 | 4500 |
| | 320 | 65 | 7330B.TVP | 4 | 1.5 | 24.8 | 325 | 390 | 3800 |
Axially asymmetric races with a 40 degree contact angle to support
both axial and radial loads
CN (normal) radial internal clearance for applications that do not
involve thermal expansion or atypical precision
Polyamide/nylon cage evenly spaces the rollers for even load
distribution and prevents contact to reduce friction, vibrations,
and noise
Open bearing for lubrication in place and for use in applications
with little exposure to dirt, grime, debris, and other contaminants
7208B Singel Row Angular Contact Ball Bearing Advantages:
1. Simple structure;
2. Higher limit speed;
3. The friction moment is relatively small.
4. It can bear both radial and axial loads.
5. The same size has larger dynamic and static load capacity than
deep groove ball bearings.
6. High rotation accuracy and low noise.
Packing Method:
We have multiple packages for shielded radial ball bearing 7208B
Singel Row Angular Contact Ball Bearing
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden
pallet
3. As customer's demand
Factory Photo:
How to place an order:
1. Send us your bearing inquiry, including your bearing models,
your quantity. If you have brand requirement, please tell us which
brand do you need as well.
2. We will quote bearing price for you. Moreover, According to the
quantity of goods, we will give you different options of
transportation.
3. If you agree with our price, we will make proforma invoice for
payment
4. After payment is done, we will start to prepare bearings and
arrange shipment
7208B Singel Row Angular Contact Ball Bearing Description:
1.Single row angular contact ball bearings can only withstand one
direction of axial load, while withstanding radial load, it will
cause additional axial force.
2.It can only limit the axial displacement of the shaft or housing
in one direction. The contact angle of angular contact ball bearing
is 40 degrees, so it can bear a large axial load.
3.Angular contact ball bearing is a non-separable design, and the
shoulders on both sides of the inner and outer rings vary in
height.
4.In order to improve the load capacity of the bearing, the
shoulder of one side of the bearing will be processed lower, so
that the bearing can be loaded with more steel balls.
FAQ:
Q: Are you a trading company or a factory?
A: We have both. We are trading company and we have own factory.
Q: What is the delivery time if we place an order?
A: For small orders, our delivery time is 3 days. If the amount is
large, usually our delivery time is 7-20 days.
Q: What is your payment term?
A: We accept T/T, W/U, PayPal and L/C.
Q: Do you have a warranty on bearings?
Answer: In normal use, our bearing guarantee period is 1 year.
