Single Carton Pack 5203-2RS Double Row Angular Contact Ball Bearing
NSK Technology Precision

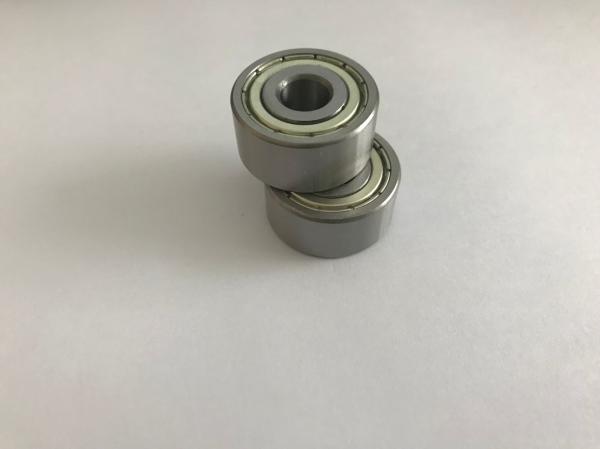

5203-2RS Double Row Angular Contact Ball Bearing
17*40*17.5mm Bearing Features:
Inner Ring Diameter (bore):17mm
Outer Ring Diameter:40mm
Width:17.5mm
Dynamic load:12.7
The static load:8.35
Bearing Weight:0.091KG
5203-2RS Double Row Angular Contact Ball Bearing Description:
| Model Number | 5203-2RS |
| Inside Diameter: | 17mm |
| Outside Diameter: | 40mm |
| Thickness: | 17.5mm |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount |
5203-2RS Double Row Angular Contact Ball Bearing
more models:
| Bearing NO. | Boundary dimensions | Load Rating | Limiting Speed | Weight(Kg) |
| Open | With shields | With seals | d | D | B | гmin | Open | Seal | Grease | Oil |
| Cr | Cor | Cr | Cor | Z,ZZ | RS,2RS | Z |
| 3200 | | | 10 | 30 | 14.3 | 0.6 | 7.35 | 5.35 | | | 15000 | | 20000 | 0.052 |
| 3201 | | | 12 | 32 | 15.9 | 0.6 | 9.70 | 7.15 | | | 14000 | | 18000 | 0.063 |
| 3202 | | |
15 | 35 | 15.9 | 0.6 | 9.70 | 7.45 | | | 12000 | | 16000 | 0.072 |
| 3302 | | | 42 | 19 | 1 | 15.2 | 11.9 | | | 10000 | | 14000 | 0.132 |
| 3203 | | |
17 | 40 | 17.5 | 0.6 | 13.8 | 10.8 | | | 11000 | | 14000 | 0.100 |
| 5203 | 5203ZZ | 5203 2RS | 40 | 17.5 | 0.6 | 13.2 | 8.15 | 12.7 | 8.35 | 11000 | 11000 | 14000 | 0.091 |
| 3303 | | | 47 | 22.5 | 1 | 21.7 | 17.1 | | | 9400 | | 13000 | 0.192 |
| 3204 | | |
20 | 47 | 20.6 | 1 | 17.2 | 15.0 | | | 9000 | | 12000 | 0.170 |
| 5204 | 5204ZZ | 5204 2RS | 47 | 20.6 | 1 | 19.7 | 12.6 | 16.0 | 10.8 | 8800 | 8800 | 12000 | 0.120 |
| 3304 | | | 52 | 22.2 | 1.1 | 20.8 | 18.4 | | | 8200 | | 11000 | 0.230 |
| 5304 | 5304ZZ | 5304 2RS | 52 | 22.2 | 1.1 | 24.7 | 15.0 | 19.8 | 12.8 | 8300 | 8300 | 11000 | 0.230 |
| 3205 | | |
25 | 52 | 20.6 | 1 | 18.9 | 18.2 | | | 7800 | | 10000 | 0.190 |
| 5205 | 5205ZZ | 5205 2RS | 52 | 20.6 | 1 | 21.4 | 14.8 | 18.9 | 13.8 | 7700 | 7700 | 10000 | 0.190 |
| 3305 | | | 62 | 25.4 | 1.1 | 28.9 | 26.5 | | | 6800 | | 9100 | 0.369 |
| 5305 | 5305ZZ | 5305 2RS | 62 | 25.4 | 1.1 | 32.7 | 20.8 | 27.5 | 18.5 | 6900 | 6900 | 9200 | 0.340 |
| 3206 | | |
30 | 62 | 23.8 | 1 | 27.3 | 27.0 | | | 6500 | | 8700 | 0.320 |
| 5206 | 5206ZZ | 5206 2RS | 62 | 23.8 | 1 | 29.7 | 21.3 | 25.4 | 18.3 | 6400 | 6400 | 8600 | 0.290 |
| 3306 | | | 72 | 30.2 | 1.1 | 38.1 | 36.1 | | | 5800 | | 7800 | 0.585 |
| 5306 | 5306ZZ | 5306 2RS | 72 | 30.2 | 1.1 | 41.0 | 28.5 | 34.3 | 25.2 | 5800 | 5800 | 7700 | 0.510 |
| 3207 | | |
35 | 72 | 27 | 1.1 | 36.8 | 37.5 | | | 5600 | | 7500 | 0.480 |
| 5207 | 5207ZZ | 5207 2RS | 72 | 27 | 1.1 | 39.2 | 29.0 | 31.7 | 24.6 | 5500 | 5500 | 7300 | 0.430 |
| 3307 | | | 80 | 34.9 | 1.5 | 48.6 | 46.8 | | | 5200 | | 7000 | 0.816 |
| 5307 | 5307ZZ | 53072RS | 80 | 34.9 | 1.5 | 51.2 | 36.2 | 46.1 | 32.8 | 5100 | 5100 | 6800 | 0.790 |
| 3208 | | |
40 | 80 | 30.2 | 1.1 | 42.0 | 43.9 | | | 5000 | | 6700 | 0.650 |
| 5208 | 5208ZZ | 5208 2RS | 80 | 30.2 | 1.1 | 44.4 | 33.6 | 36.5 | 29.1 | 5000 | 5000 | 6700 | 0.570 |
| 3308 | | | 90 | 36.5 | 1.5 | 54.1 | 53.8 | | | 4600 | | 6100 | 1.07 |
| 5308 | 5308ZZ | 5308 2RS | 90 | 36.5 | 1.5 | 62.7 | 45.4 | 51.4 | 37.6 | 4600 | 4600 | 6100 | 1.05 |
| 3209 | | |
45 | 85 | 30.2 | 1.1 | 45.4 | 51.4 | | | 4600 | | 6100 | 0.710 |
| 5209 | 5209ZZ | 5209 2RS | 85 | 30.2 | 1.1 | 49.9 | 38.4 | 41.7 | 33.9 | 4600 | 4600 | 6100 | 0.620 |
| 3309 | | | 100 | 39.7 | 1.5 | 66.1 | 67.3 | | | 4100 | | 5500 | 1.42 |
| 5309 | 5309ZZ | 5309 2RS | 100 | 39.7 | 1.5 | 75.1 | 55.7 | 68.9 | 51.4 | 4100 | 4100 | 5500 | 1.42 |
5203-2RS Double Row Angular Contact Ball Bearing Applications:
1. Oil pump, Roots blower, air compressor, all kinds of
transmission, fuel injection pump, printing machinery,
2. Planetary reducer, extraction equipment, cycloid reducer, food
packaging machinery, welding machine, soldering iron,
3. Square box, gravity spray gun, stripper, half shaft, inspection
and analysis equipment, fine chemical machinery.
5203-2RS Double Row Angular Contact Ball Bearing Features:
1. The inclinability between inner and outer rings of double row
angular contact ball bearings is limited.
2. The allowable inclination angle depends on the internal
clearance, bearing size, internal design and force and moment
acting on the bearing.
3. The maximum allowable inclination angle should ensure that no
excessive additional stress is generated in the bearing.
Packing Method:
We have multiple packages for shielded radial ball bearing 5203-2RS
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden
pallet
3. As customer's demand
Factory Photo:
Structural classification:
1.Standard design of type A bearings with outer diameter less than
or equal to 90 mm. There is no gap in the ball, so it can bear the
same two-way axial load. With light glass fiber reinforced nylon 66
cage, the bearing temperature rise is very small.
2.Standard design of type B bearing with diameter greater than 90
mm. On one side, there is a ball-loading gap, which is equipped
with steel stamping cage or brass solid cage.
3.Type C is a reinforced structure, with a filling gap on one side,
more steel balls can be loaded, so the bearing capacity is higher.
4.Double row angular contact ball bearings with dustproof cover on
both sides and seal ring on both sides can be designed with
dustproof cover (non-contact type) or seal ring (contact type) on
both sides. The interior of sealed bearing is filled with anti-rust
lithium grease, and the operating temperature is generally - 30
~+110 C.
Working Principle:
1.Double Row Angular Contact Ball Bearing can bear radial load,
radial load and axial load.
2.When it only bears radial load, the contact Angle is zero. When
the deep groove ball bearing has a large radial clearance.
3.It has the performance of angular contact bearing and can bear a
large axial load.
